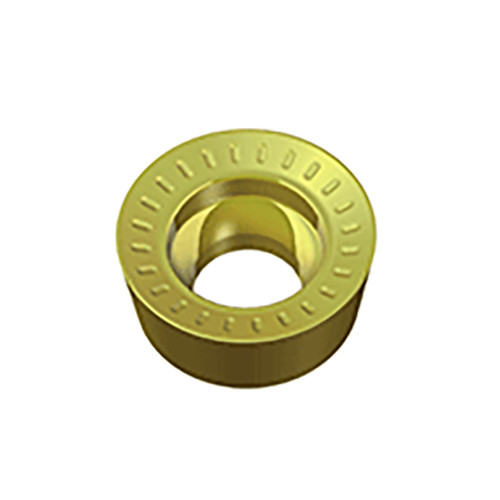

Taegutec RYMX 1004-MM TT8020

Product Code: 6106745

$17.37$15.79 Ex. GST

Product Code: 6106745 SKU 6106745 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Positive strong round inserts with sharp but strong cutting edges for stainless steels and difficult-to-cut materials

Weight	0.0026 kg
barcode

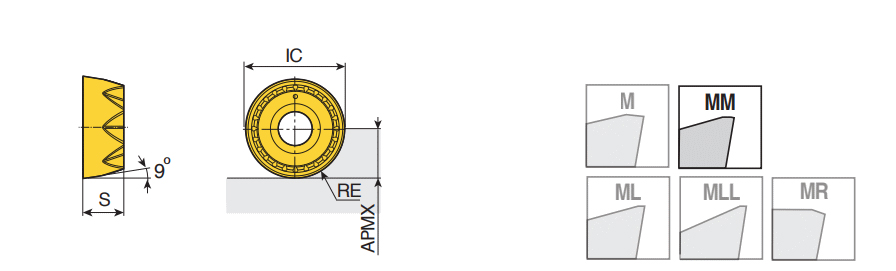

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8020 Application:, Facing, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.35 mm/tooth Cutting Edge Length (L): 5 mm Cutting Edge Material: Carbide Corner Radius (RE): 5 mm Minimum Feed per Tooth (fz(min)): 0.07 mm/tooth Depth of Cut Maximum (APMX): 4 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 10 mm Body Material: Carbide Insert Thickness (S): 4 mm Unit: M Coating: TiCN
