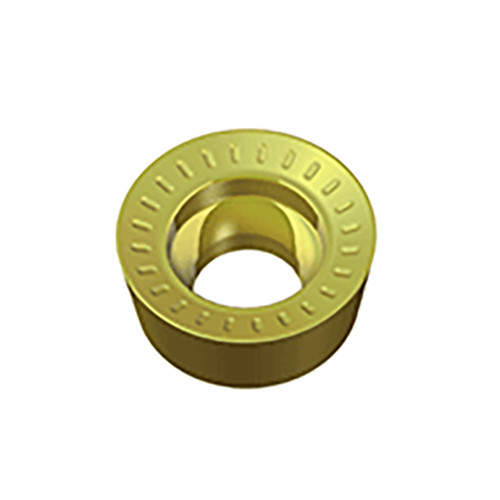

Taegutec RYMX 1205-MM TT3540

Description

Positive strong round inserts with sharp but strong cutting edges for stainless steels and difficult-to-cut materials

Weight	0.0060 kg
barcode

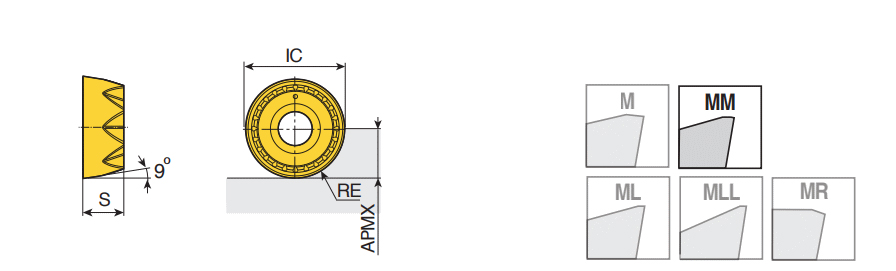

Additional Information	Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT3540 Application:, Facing, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.4 mm/tooth Cutting Edge Length (L): 6 mm Cutting Edge Material: Carbide Corner Radius (RE): 6 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 5 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 12 mm Body Material: Carbide Insert Thickness (S): 4.8 mm Unit: M Coating: TiAlN
