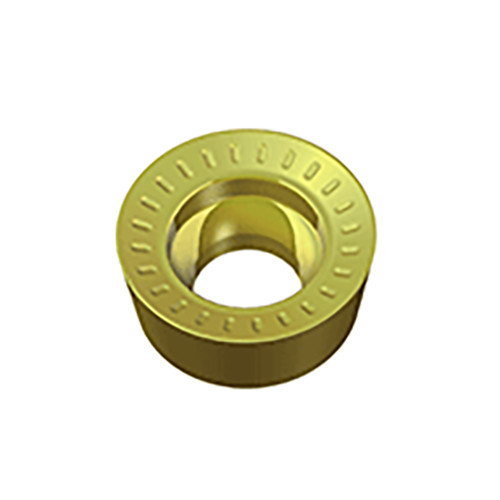

Taegutec RYMX 1606-MM TT9080

Product Code: 6120997

$26.82$24.38 Ex. GST

Product Code: 6120997 SKU 6120997 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Positive strong round inserts with sharp but strong cutting edges for stainless steels and difficult-to-cut materials

Weight	0.0124 kg
barcode

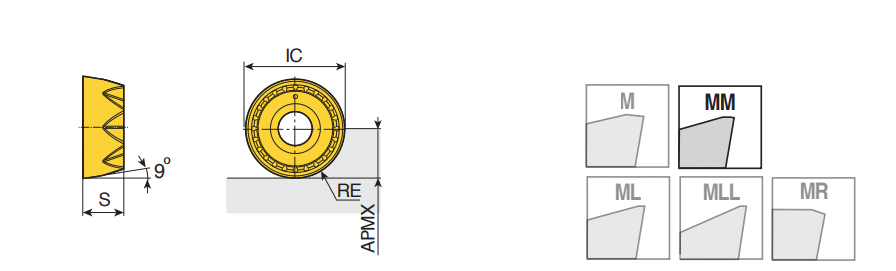

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Facing, Helical Interpolation, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 0.45 mm/tooth Cutting Edge Length (L): 8 mm Cutting Edge Material: Carbide Corner Radius (RE): 8 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 6.5 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 16 mm Body Material: Carbide Insert Thickness (S): 6.1 mm Unit: M Coating: TiAlN+TiN
