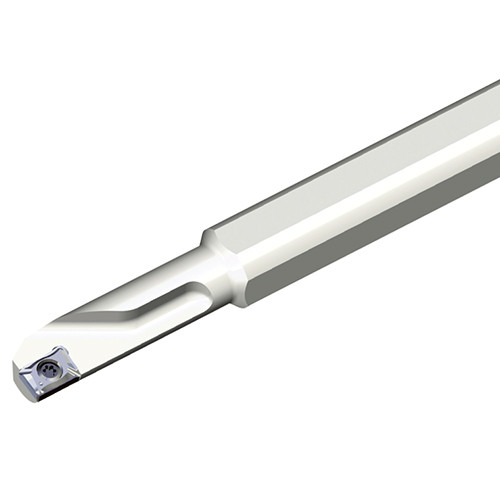

Boring bars with TOPCAP inserts for boring with external coolant
Additional information
Weight
0.0700 kg
barcode
Additional Information

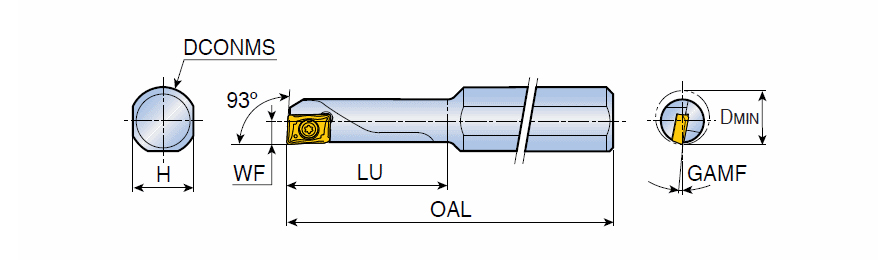

Connection Diameter Machine Side (DCONMS): 10 mm
Application:, Drilling Ext Face Int. Turning, Functional Length (LF): 28 mm
Rake Angle Radial (GAMF): 2 Degrees
Reduced Body Diameter Length (LDRED): 110 mm
Body Material: Steel
Minimum Bore Diameter (DMIN): 8 mm
Measurement Type: Metric
Cutting Direction (HAND): Left Hand
Unit: M
