Taegutec S12M SVJCL 08-D16

Product Code: 3606261

$214.72$195.20 Ex. GST

Product Code: 3606261 SKU 3606261 Categories BORING BARS, Carbide, CUTTING TOOLS (HSS & Carbide)

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

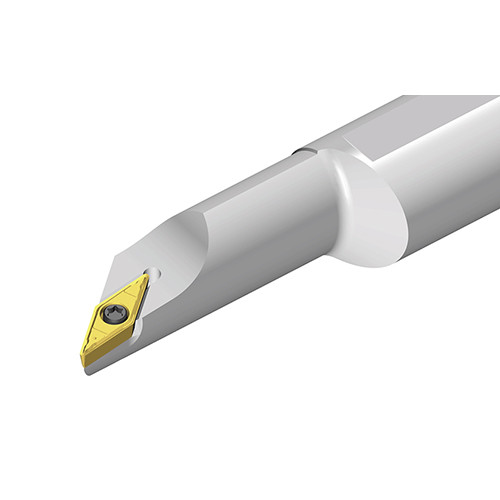

TOPMINI screw type boring bars with positive 35° Rhombic inserts of 7° clearance angle and 142° approach angle for small components machining

Weight	0.1300 kg
barcode
Additional Information	Connection Diameter Machine Side (DCONMS): 12 mm Application:, Int 142° App 35° Diamond, Functional Length (LF): 150 mm Body Material: Steel Reduced Body Diameter Length (LDRED): 26 mm Measurement Type: Metric Minimum Bore Diameter (DMIN): 16 mm Unit: M Cutting Direction (HAND): Left Hand
