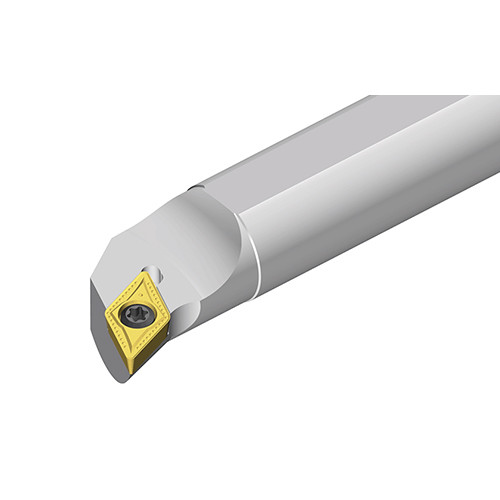

Screw type boring bars with positive 55° Rhombic inserts of 7° clearance angle with 107.5° approach angle
Additional information
Weight
0.3200 kg
barcode
Additional Information
Connection Diameter Machine Side (DCONMS): 16 mm
Application:, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Functional Length (LF): 200 mm
Body Material: Steel
Reduced Body Diameter Length (LDRED): 27 mm
Measurement Type: Metric
Minimum Bore Diameter (DMIN): 20 mm
Unit: M
Cutting Direction (HAND): Left Hand
