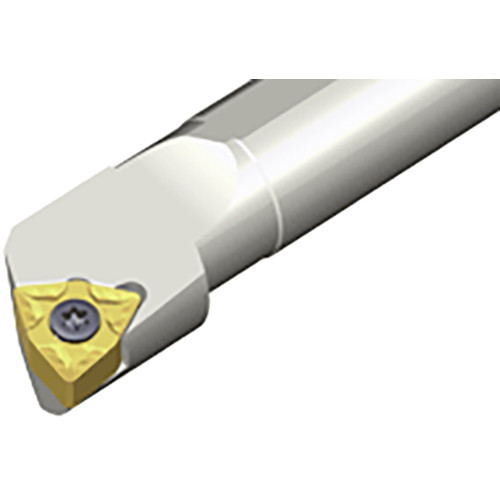

Screw type RHINOTURN boring bars for WNMX 0604 inserts with 95° approach angle
Additional information
Weight
0.4050 kg
barcode
Additional Information

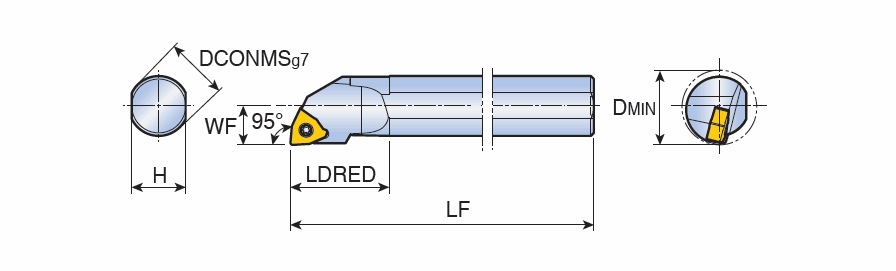

Connection Diameter Machine Side (DCONMS): 20 mm
Application:, Int 95° App 80° Trigon, Functional Length (LF): 180 mm
Body Material: Steel
Reduced Body Diameter Length (LDRED): 33 mm
Measurement Type: Metric
Minimum Bore Diameter (DMIN): 25 mm
Unit: M
Cutting Direction (HAND): Right Hand
