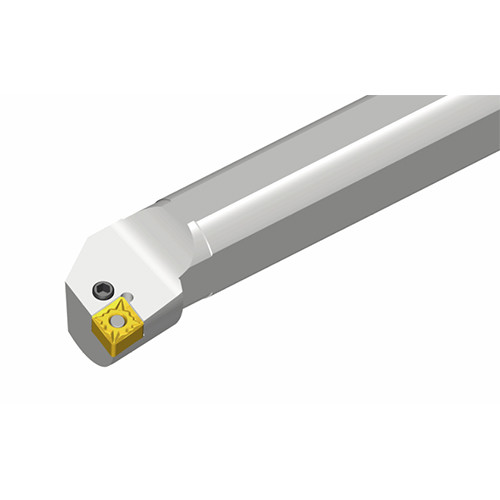

Lever type boring bars with 95° approach angle for negative 80° Rhombic inserts
Additional information
Weight
1.0950 kg
barcode
Additional Information

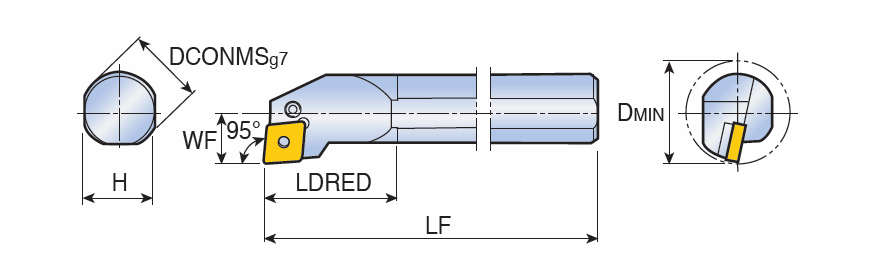

Connection Diameter Machine Side (DCONMS): 25 mm
Application:, Int 95° App 80° Diamond, Functional Length (LF): 300 mm
Body Material: Steel
Reduced Body Diameter Length (LDRED): 40 mm
Measurement Type: Metric
Minimum Bore Diameter (DMIN): 32 mm
Unit: M
Cutting Direction (HAND): Left Hand
