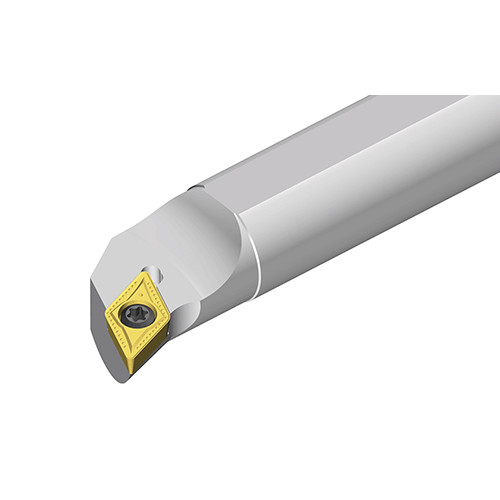

Screw type boring bars with positive 55° Rhombic inserts of 7° clearance angle with 107.5° approach angle
Additional information
Weight
1.0900 kg
barcode
Additional Information

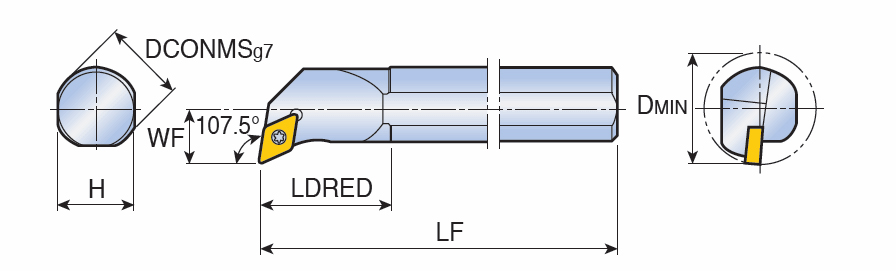

Connection Diameter Machine Side (DCONMS): 25 mm
Application:, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Functional Length (LF): 300 mm
Body Material: Steel
Reduced Body Diameter Length (LDRED): 50 mm
Measurement Type: Metric
Minimum Bore Diameter (DMIN): 32 mm
Unit: M
Cutting Direction (HAND): Left Hand
