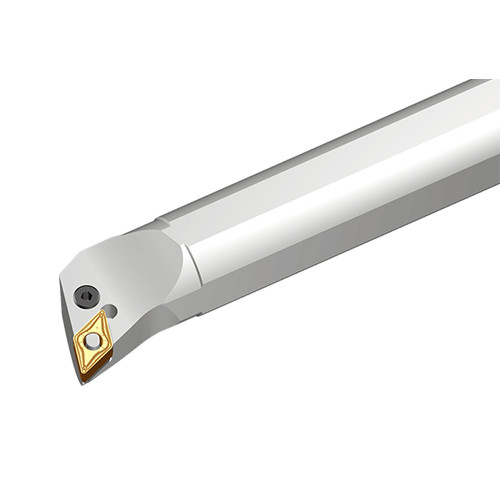

Hook lever RHINOTURN boring bars for DN.. 1305 inserts with 107.5° approach angle
Additional information
Weight
1.4750 kg
barcode
Additional Information
Connection Diameter Machine Side (DCONMS): 32 mm
Application:, Int 100° App 70° Diamond, Int 107.5° App 55° Diamond, Functional Length (LF): 250 mm
Body Material: Steel
Reduced Body Diameter Length (LDRED): 45 mm
Measurement Type: Metric
Minimum Bore Diameter (DMIN): 40 mm
Unit: M
Cutting Direction (HAND): Left Hand
