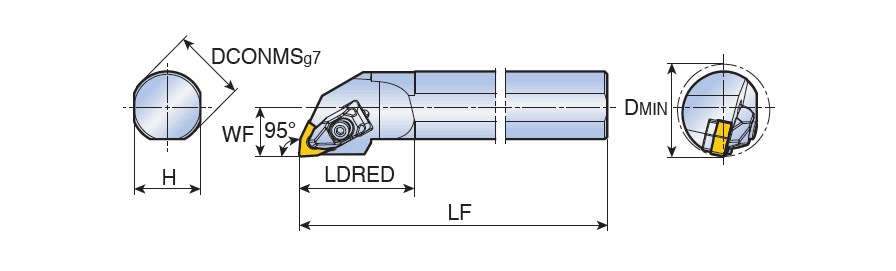

T-holder RHINOTURN boring bars for WNMX 0604 inserts with 95° approach angle
Additional information
Weight
1.5200 kg
barcode
Additional Information
Connection Diameter Machine Side (DCONMS): 32 mm
Application:, Int 95° App 80° Trigon, Functional Length (LF): 250 mm
Body Material: Steel
Reduced Body Diameter Length (LDRED): 45 mm
Measurement Type: Metric
Minimum Bore Diameter (DMIN): 40 mm
Unit: M
Cutting Direction (HAND): Left Hand
