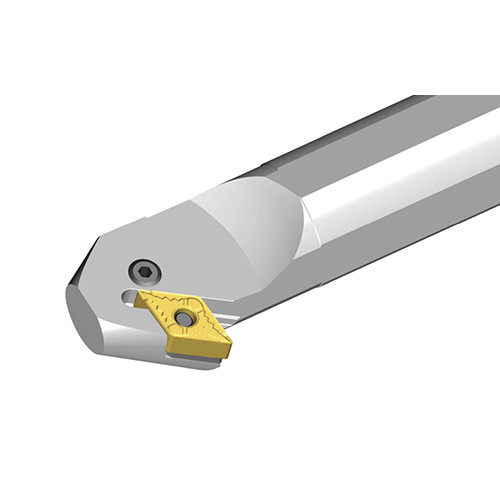

Lever type back boring bars with 93° approach angle for negative 55° Rhombic inserts
Additional information
Weight
2.9500 kg
barcode
Additional Information
Connection Diameter Machine Side (DCONMS): 40 mm
Cutting Direction (HAND): Right Hand
Functional Length (LF): 300 mm
Application:, Int 93° App 70° Diamond, Int 93° App Back 55° Diamond, Reduced Body Diameter Length (LDRED): 35 mm
Body Material: Steel
Functional Width (WF): 10.5 mm
Measurement Type: Metric
Minimum Bore Diameter (DMIN): 50 mm
Unit: M
