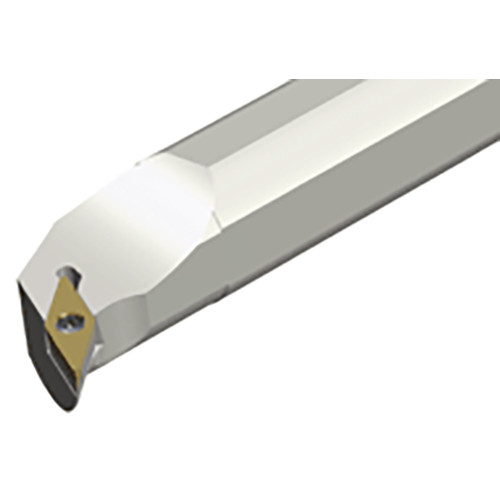

Screw type boring bar for positive 35° Rhombic inserts of 7° clearance angle with 108° approach angle
Additional information
Weight
2.7200 kg
barcode
Additional Information
Connection Diameter Machine Side (DCONMS): 40 mm
Application:, Int 100° App 70° Diamond, Int 108° App 35° Diamond, Functional Length (LF): 300 mm
Body Material: Steel
Reduced Body Diameter Length (LDRED): 55 mm
Measurement Type: Metric
Minimum Bore Diameter (DMIN): 50 mm
Unit: M
Cutting Direction (HAND): Left Hand
