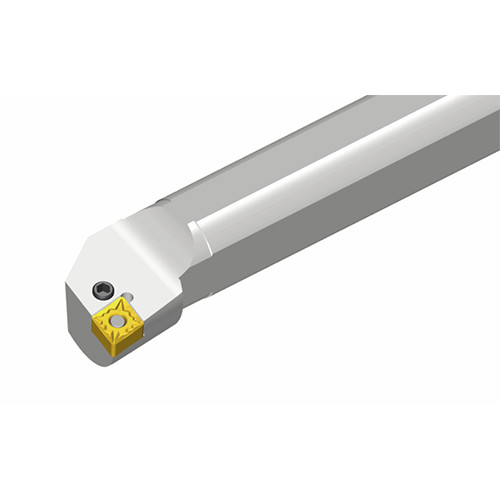

Lever type boring bars with 95° approach angle for negative 80° Rhombic inserts
Additional information
Weight
5.0750 kg
barcode
Additional Information

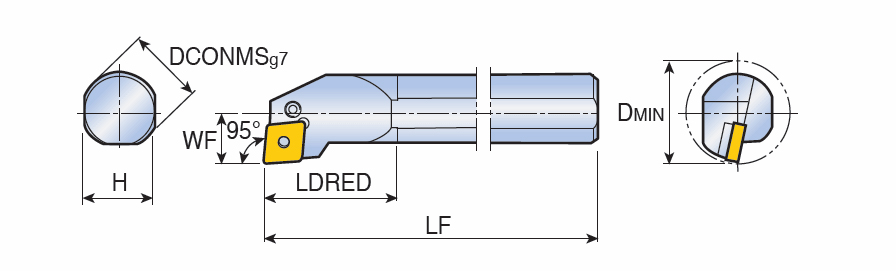

Connection Diameter Machine Side (DCONMS): 50 mm
Application:, Int 95° App 80° Diamond, Functional Length (LF): 350 mm
Body Material: Steel
Reduced Body Diameter Length (LDRED): 70 mm
Measurement Type: Metric
Minimum Bore Diameter (DMIN): 63 mm
Unit: M
Cutting Direction (HAND): Left Hand
