Taegutec SBE 2080L UF10N

Product Code: 4106138

$110.23$100.21 Ex. GST

Product Code: 4106138 SKU 4106138 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

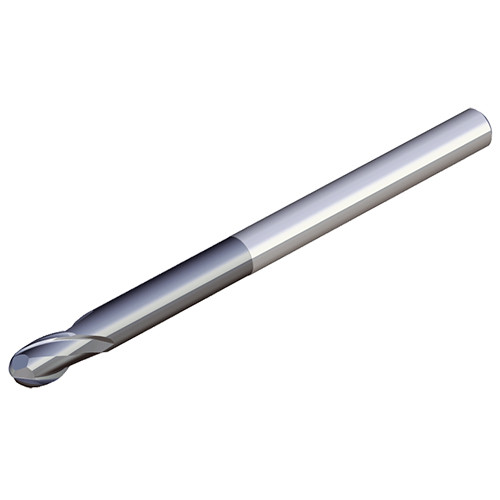

Solid carbide ball nose end mills with 2 flute & long type for general application

Additional information

Weight 0.1180 kg
Dimensions
barcode
Additional Information

Cutting Diameter (DC): 8 mm
Applicable Material:, Steel, Stainless Steel, Connection Diameter Machine Side (DCONMS): 10 mm
Application:, Profiling, Solid Carbide End Mills, Depth of Cut Maximum (APMX): 12 mm
Corner Radius (RE): 4 mm
Overall Length (OAL): 125 mm
Neck Diameter (DN): 7.8
Cutting Edge Material: Carbide
Grade: UF10N
Coating: Uncoated
Body Material: Carbide
Flute Count (NOF): 2
Measurement Type: Metric
Shank Type: Round
Unit: M
Usable Length (LU): 55 mm

Brand

Taegutec
