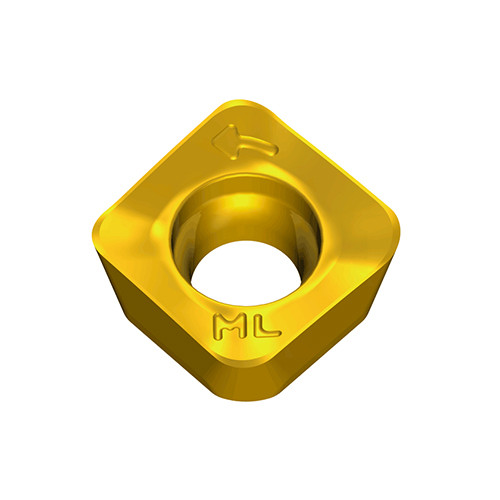

Taegutec SBMT 060310R-ML TT8080

Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8080
Application:, Facing, Helical Interpolation, High Feed Milling, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 1.2 mm/tooth

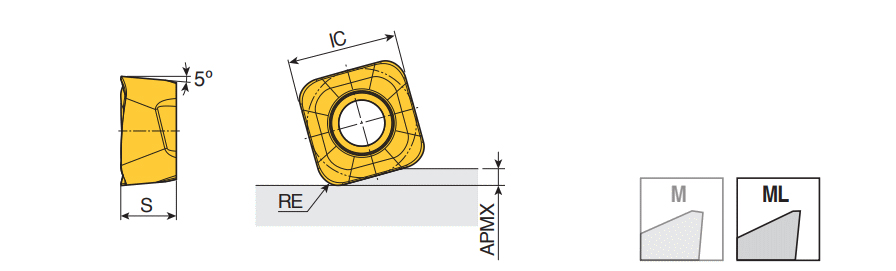

Cutting Edge Length (L): 13.05 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 1 mm
Minimum Feed per Tooth (fz(min)): 0.3 mm/tooth
Depth of Cut Maximum (APMX): 1 mm
Measurement Type: Metric
Inscribed Circle Diameter (IC): 3.6 mm
Body Material: Carbide
Insert Thickness (S): 3.16 mm
Unit: M
Coating: TiAlN+TiN
