Taegutec SBMT 090415R-M TT8080

Product Code: 6158694

$27.29$24.81 Ex. GST

Product Code: 6158694 SKU 6158694 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

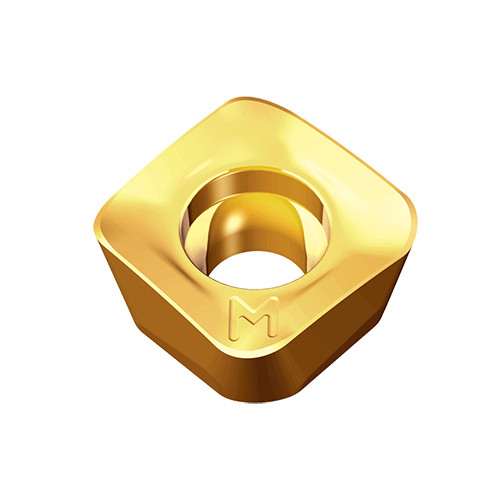

Positive square inserts with 4 cutting edges for high feed milling in max. depth of cut ap 1.2 mm

Weight	0.0040 kg
barcode

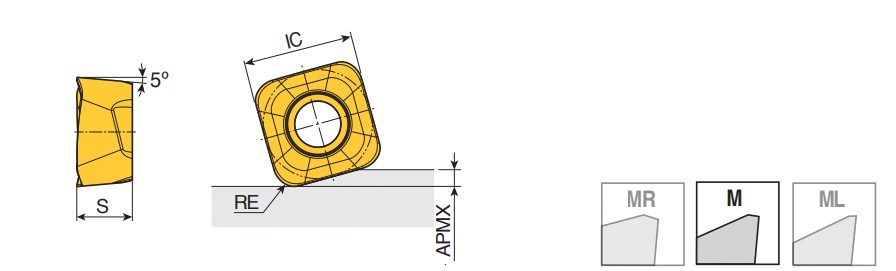

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8080 Application:, Facing, Helical Interpolation, High Feed Milling, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 1.3 mm/tooth Cutting Edge Length (L): 9 mm Cutting Edge Material: Carbide Corner Radius (RE): 1.5 mm Minimum Feed per Tooth (fz(min)): 0.3 mm/tooth Depth of Cut Maximum (APMX): 1.2 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 9 mm Body Material: Carbide Insert Thickness (S): 4 mm Unit: M Coating: TiAlN+TiN
