Taegutec SBMT 130625R-M TT9080

Product Code: 6116675

$29.72$27.02 Ex. GST

Product Code: 6116675 SKU 6116675 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

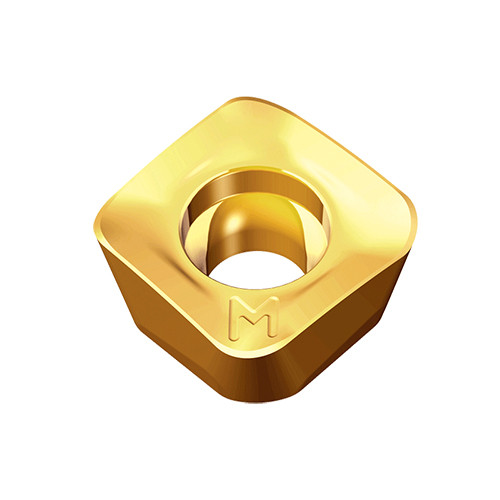

Positive square inserts with 4 cutting edges for high feed milling in max. depth of cut ap 2,0 mm

Weight	0.0115 kg
barcode

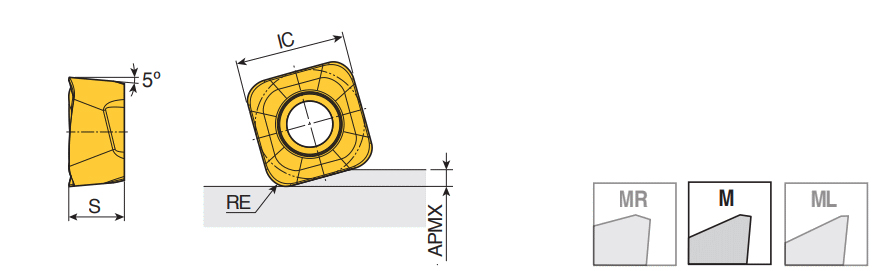

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Facing, Helical Interpolation, High Feed Milling, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 1.5 mm/tooth Cutting Edge Length (L): 13.05 mm Cutting Edge Material: Carbide Corner Radius (RE): 2.5 mm Minimum Feed per Tooth (fz(min)): 0.3 mm/tooth Depth of Cut Maximum (APMX): 2 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 13.05 mm Body Material: Carbide Insert Thickness (S): 6.65 mm Unit: M Coating: TiAlN+TiN
