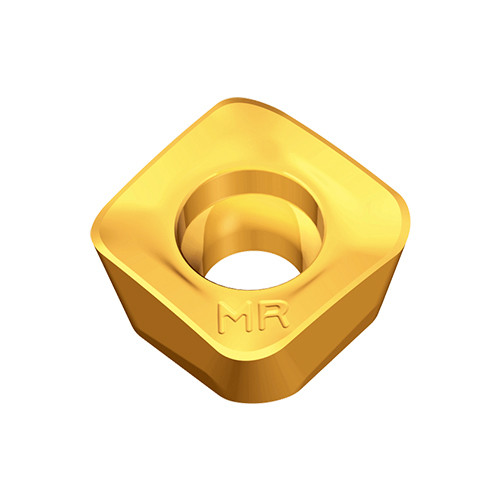

Positive square inserts with 4 cutting edges for high feed milling in max. depth of cut ap 2,0 mm
Additional information
Weight
0.0119 kg
barcode
Additional Information
Applicable Material:, Steel, Hard Materials, Grade: TT2510
Application:, Facing, Helical Interpolation, High Feed Milling, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 1.5 mm/tooth

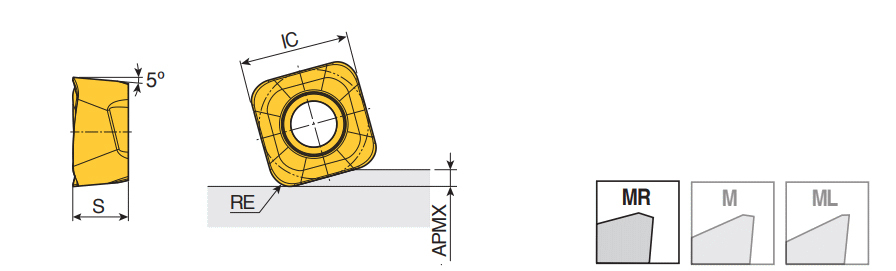

Cutting Edge Length (L): 13.05 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 2.5 mm
Minimum Feed per Tooth (fz(min)): 0.3 mm/tooth
Depth of Cut Maximum (APMX): 2 mm
Number of Cutting Edges: 4
Inscribed Circle Diameter (IC): 13.05 mm
Measurement Type: Metric
Insert Thickness (S): 6.65 mm
Body Material: Carbide
Coating: AlTiN
Unit: M
