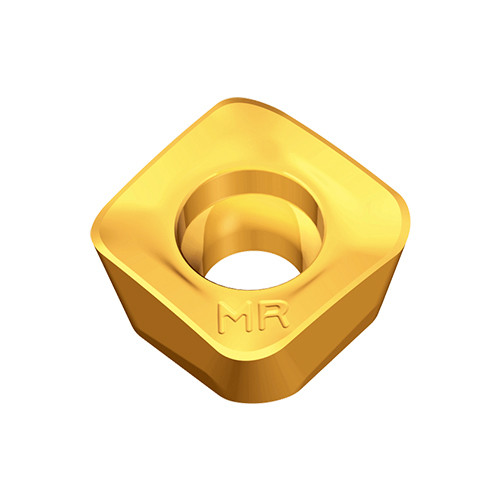

Taegutec SBMT 130625R-MR TT9080

Description

Positive square inserts with 4 cutting edges for high feed milling in max. depth of cut ap 2,0 mm

Weight	0.0116 kg
barcode

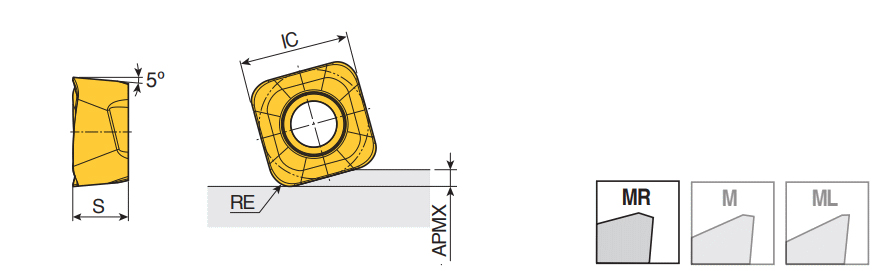

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Facing, Helical Interpolation, High Feed Milling, Inserts, Profiling, Rampdown, Maximum Feed per Tooth (fz(max)): 1.5 mm/tooth Cutting Edge Length (L): 13.05 mm Cutting Edge Material: Carbide Corner Radius (RE): 2.5 mm Minimum Feed per Tooth (fz(min)): 0.3 mm/tooth Depth of Cut Maximum (APMX): 2 mm Number of Cutting Edges: 4 Inscribed Circle Diameter (IC): 13.05 mm Measurement Type: Metric Insert Thickness (S): 6.65 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M
