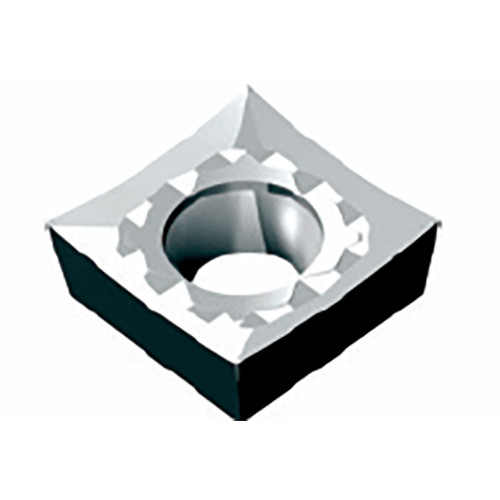

Taegutec SCGT 120402 FL K10

Description

Positive periphery ground & top polished Square inserts with very high positive rake & sharp cutting edges for aluminum machining

Weight	0.0089 kg
barcode
Additional Information	Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Grade: K10 Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 0.5 mm Corner Radius (RE): 0.2 mm Depth of Cut Maximum (APMX): 3 mm Cutting Edge Length (L): 12.7 mm Min. Turning Feed (ft(min)): 0.1 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.3 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: Uncoated Unit: M
