Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec SCGW 09T308 LS2 TB730
$132.95$120.86 Ex. GST

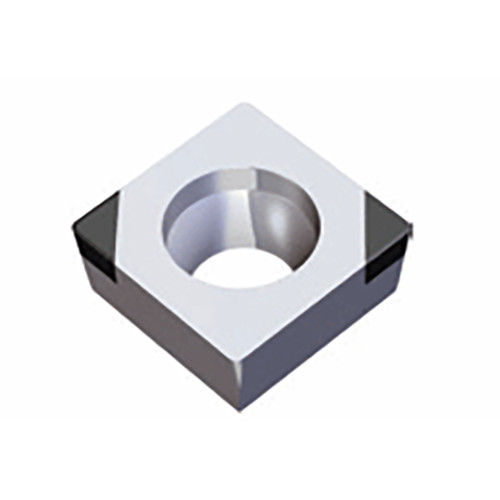

Positive Square inserts with CBN tips for finishing of hardened steels
Applicable Material:, Steel, Cast Iron, Grade: TB730 Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 0.05 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 0.5 mm Cutting Edge Length (L): 9.52 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 3.97 mm Max. Turning Feed (ft(max)): 0.3 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: PCBN Body Material: Carbide Coating: Uncoated Unit: M
