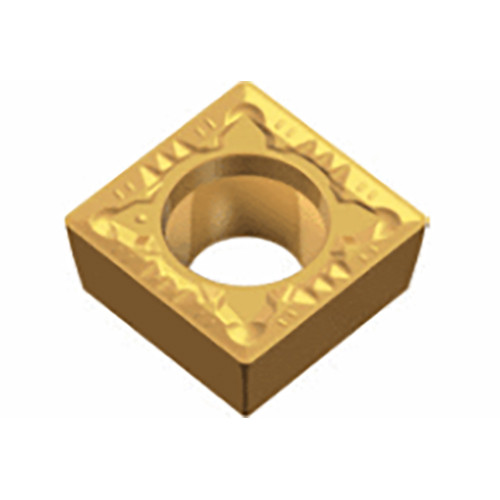

Taegutec SCMT 09T308 FM TT5100

Description

Positive Square inserts for medium and semi-finishing machining of steels & stainless steels with low cutting force & 7° clearance angle

Weight	0.0053 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Grade: TT5100 Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 0.8 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 2.5 mm Cutting Edge Length (L): 0 mm Min. Turning Feed (ft(min)): 0.1 mm/rev Insert Thickness (S): 3.97 mm Max. Turning Feed (ft(max)): 0.25 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
