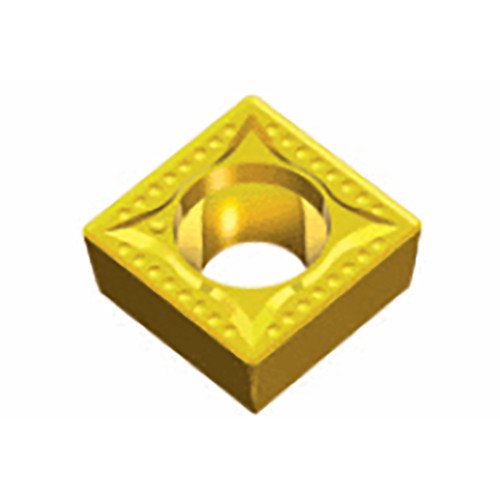

Taegutec SCMT 120408 MT TT8020

Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Fixing Hole Diameter (D1): 5.5 mm
Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 1 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 5 mm
Cutting Edge Length (L): 12.7 mm
Min. Turning Feed (ft(min)): 0.13 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.3 mm/rev
Inscribed Circle Diameter (IC): 12.7 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN
Unit: M
Grade: TT8020
