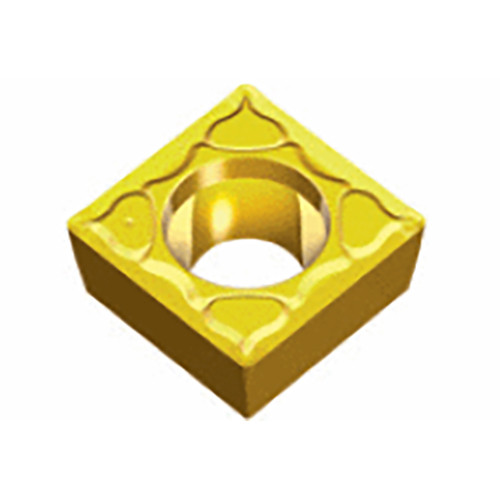

Taegutec SCMT 120408 PC TT9225

Description

Positive Square inserts for medium applications of wide variety of materials with 7° clearance angle & low cutting force

Weight	0.0078 kg
barcode
Additional Information	Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT9225 Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 0.7 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 4 mm Cutting Edge Length (L): 12.7 mm Min. Turning Feed (ft(min)): 0.1 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.3 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al203+TiCN Unit: M
