Taegutec SCRM90TN 10160-40R-22

Product Code: 3105684

$2,352.90$2,139.00 Ex. GST

Product Code: 3105684 SKU 3105684 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

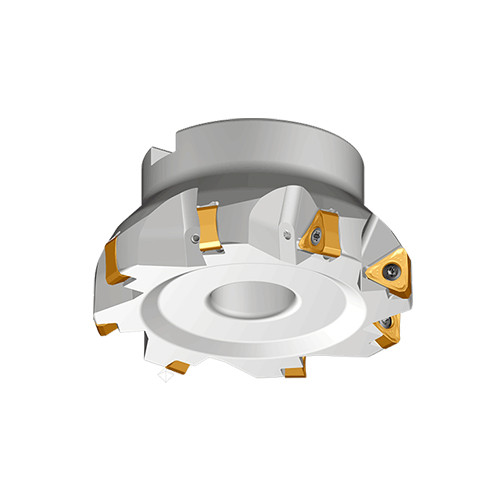

Heavy duty 90° face mills with strong six cutting edges of double-sided TN 22 inserts

Weight	5.2350 kg
Dimensions
barcode

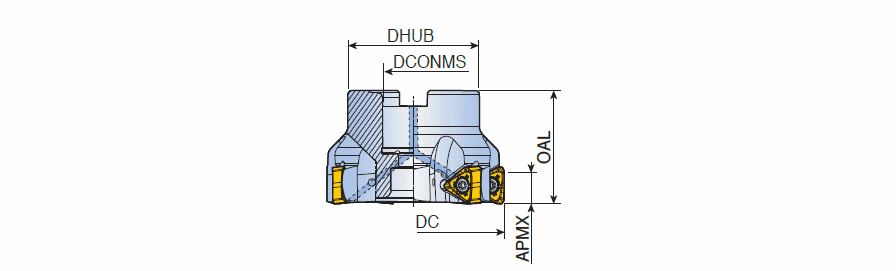

Additional Information	Cutting Diameter (DC): 160 mm Master Insert Identification (MIID): TNMX 2207 PNTN Cutting Item Count (CICT): 10 Body Material: Steel Depth of Cut Maximum (APMX): 15 mm Application:, Facing, Shouldering, Slotting, Connection Diameter Machine Side (DCONMS): 40 mm Measurement Type: Metric Overall Length (OAL): 63 mm Unit: M
