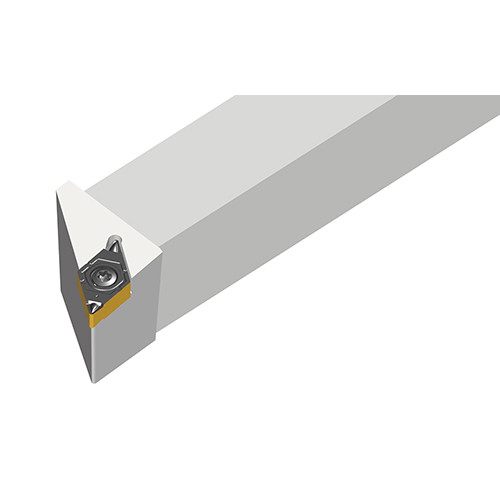

Screw type holders with 93° approach angle and mini size DN.X 0803 negative inserts for small depth of cut machining
Additional information
Weight
0.2100 kg
barcode
Additional Information

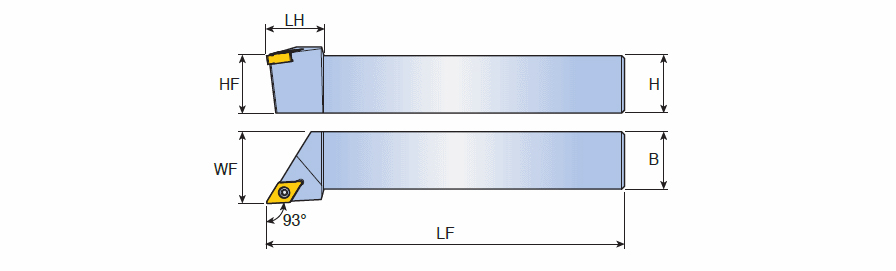

Shank Height (H): 16 mm
Application:, Ext 93° App 55°Diamond, Shank Width (B): 16 mm
Body Material: Steel
Head Length (LH): 16 mm
Measurement Type: Metric
Functional Width (WF): 20 mm
Unit: M
Cutting Direction (HAND): Right Hand
