Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec SDMT 050204-M TT9080
$20.01$18.19 Ex. GST

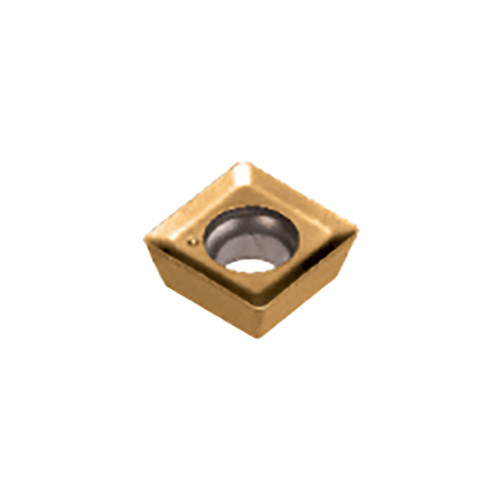

Positive square inserts with 4 cutting edges for small parts machining

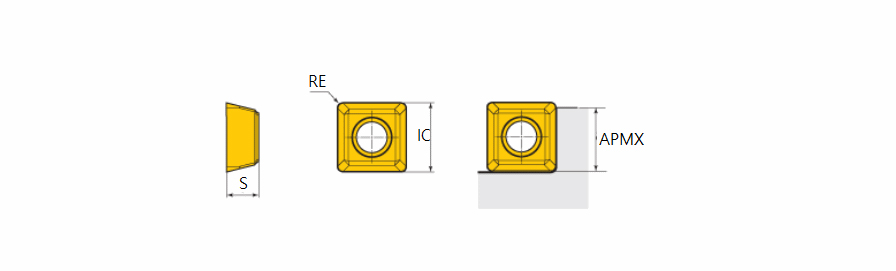

Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Facing, Inserts, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.06 mm/tooth Cutting Edge Length (L): 4.5 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.4 mm Minimum Feed per Tooth (fz(min)): 0.03 mm/tooth Depth of Cut Maximum (APMX): 3.6 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 5.09 mm Body Material: Carbide Insert Thickness (S): 2.38 mm Unit: M Coating: TiAlN+TiN
