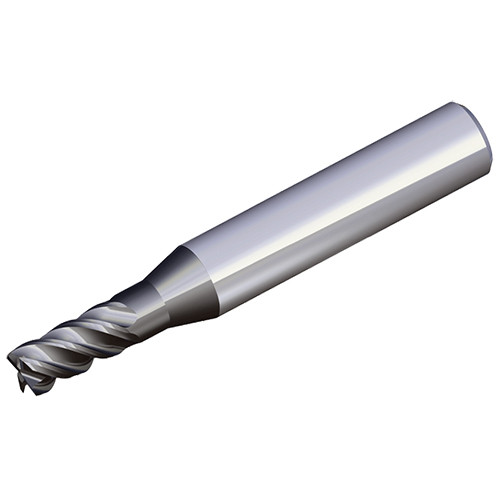

Taegutec SED 4040U-C0.1 TT5515

Description

4 Flute solid carbide end mills for difficult-to-cut materials with chamfer & unequal spaced cutting edges in less vibration and high productivity

Weight	0.0225 kg
Dimensions
barcode
Additional Information	Cutting Diameter (DC): 4 mm End Shape: Chamfer Connection Diameter Machine Side (DCONMS): 6 mm Usable Length (LU): 14 mm Depth of Cut Maximum (APMX): 12 mm Applicable Material:, Steel, Stainless Steel, Cast Iron, Hard Materials, Super-Alloys / Titanium, Overall Length (OAL): 57 mm Application:, Drill Mill, Helical Interpolation, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Cutting Edge Material: Carbide Corner Chamfer Width (CHW): 0.1 mm Coating: AlTiCrN Grade: TT5515 Flute Count (NOF): 4 Body Material: Carbide Flute Helix Angle (FHA): 45 Degrees Measurement Type: Metric Shank Type: Round Unit: M
