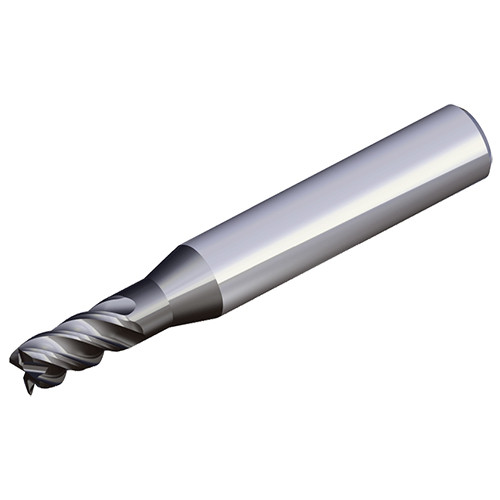

Taegutec SED 4140U TT5515

Description

4 Flute solid carbide end mills for difficult-to-cut materials with flat type & unequal spaced cutting edges in less vibration and high productivity

Weight	0.1820 kg
Dimensions
barcode
Additional Information	Cutting Diameter (DC): 14 mm End Shape: Square Connection Diameter Machine Side (DCONMS): 14 mm Usable Length (LU): – Depth of Cut Maximum (APMX): 35 mm Applicable Material:, Steel, Stainless Steel, Cast Iron, Hard Materials, Super-Alloys / Titanium, Overall Length (OAL): 90 mm Application:, Drill Mill, Helical Interpolation, Rampdown, Shouldering, Slotting, Solid Carbide End Mills, Step down machining, Cutting Edge Material: Carbide Grade: TT5515 Coating: AlTiCrN Body Material: Carbide Flute Count (NOF): 4 Measurement Type: Metric Flute Helix Angle (FHA): 45 Degrees Unit: M Shank Type: Round
