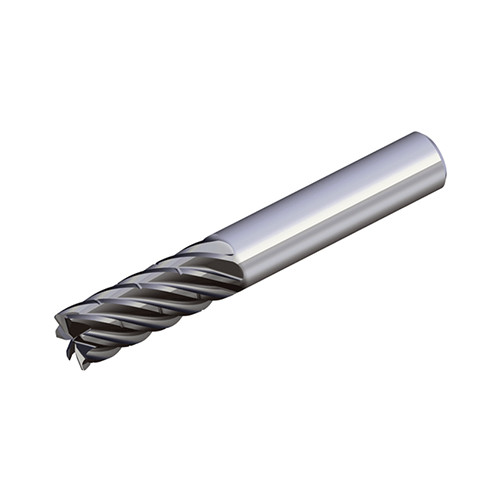

Taegutec SED 7060-4D-N TT5515

Product Code: 6336702

$150.56$136.87 Ex. GST

Product Code: 6336702 SKU 6336702 Categories Carbide, CUTTING TOOLS (HSS & Carbide), ENDMILLS & SLOTDRILLS

Taegutec SED 7060-4D-N TT5515

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

7 Flute chip splitter type solid carbide end mills with unequal spaced cutting edges for roughing of difficult-to-cut materials in trochoidal high productivity, less vibration and low cutting force machining

Additional information

Weight	0.0300 kg
Dimensions
barcode
Additional Information	Cutting Diameter (DC): 6 mm End Shape: Corner Radius Connection Diameter Machine Side (DCONMS): 6 mm Applicable Material:, Steel, Stainless Steel, Cast Iron, Hard Materials, Super-Alloys / Titanium, Depth of Cut Maximum (APMX): 24 mm Application:, Helical Interpolation, Rampdown, Shouldering, Solid Carbide End Mills, Trochoidal Milling, Overall Length (OAL): 70 mm Corner Radius (RE): 0.5 mm Cutting Edge Material: Carbide Grade: TT5515 Coating: AlTiCrN Body Material: Carbide Flute Count (NOF): 7 Measurement Type: Metric Flute Helix Angle (FHA): 38 Degrees Unit: M Shank Type: Round

Brand

Taegutec
