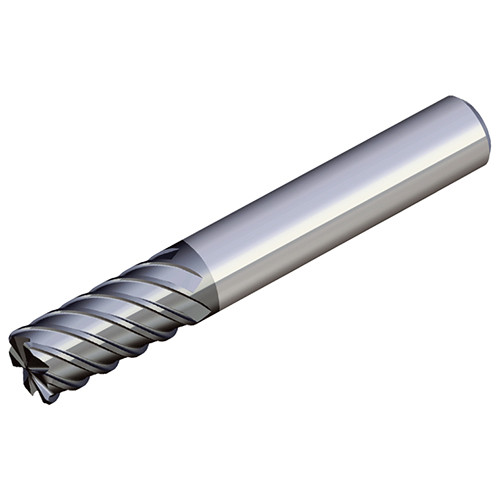

Taegutec SEH 6100T-R1.0 TT5515

Cutting Diameter (DC): 10 mm
End Shape: Corner Radius
Connection Diameter Machine Side (DCONMS): 10 mm
Applicable Material:, Steel, Stainless Steel, Cast Iron, Hard Materials, Super-Alloys / Titanium, Depth of Cut Maximum (APMX): 22 mm
Application:, Helical Interpolation, Rampdown, Shouldering, Solid Carbide End Mills, Trochoidal Milling, Overall Length (OAL): 68 mm
Corner Radius (RE): 1 mm
Cutting Edge Material: Carbide
Grade: TT5515
Coating: AlTiCrN
Body Material: Carbide
Flute Count (NOF): 6
Measurement Type: Metric
Flute Helix Angle (FHA): 45 Degrees
Unit: M
Shank Type: Round
