Taegutec SEHT 12T3 AFN-AL K10

Description

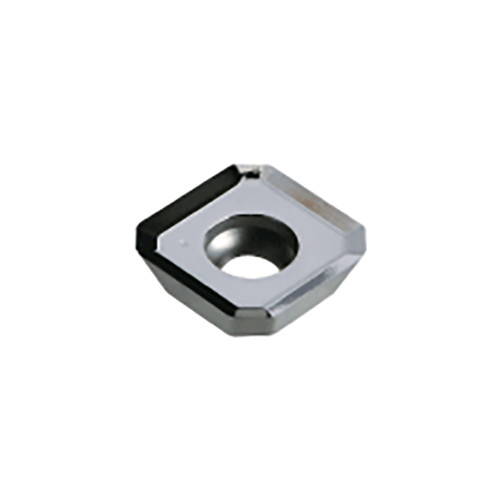

High positive ground square inserts with sharp cutting edges & polished rake face for aluminum machining in 45° cutters

Weight	0.0067 kg
barcode

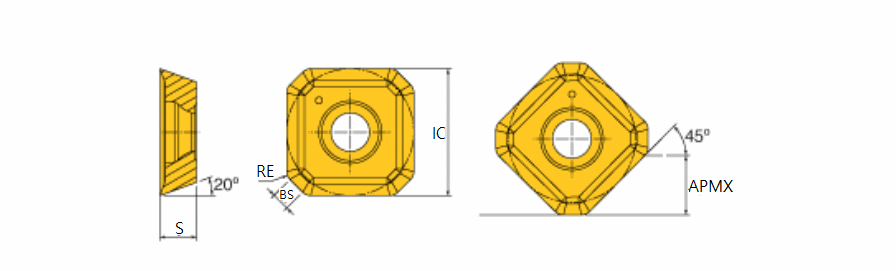

Additional Information	Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Grade: K10 Application:, Chamfer & Serration, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.3 mm/tooth Cutting Edge Length (L): 5 mm Cutting Edge Material: Carbide Corner Radius (RE): 1.2 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 4 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 13.2 mm Body Material: Carbide Insert Thickness (S): 3.8 mm Unit: M Coating: Uncoated
