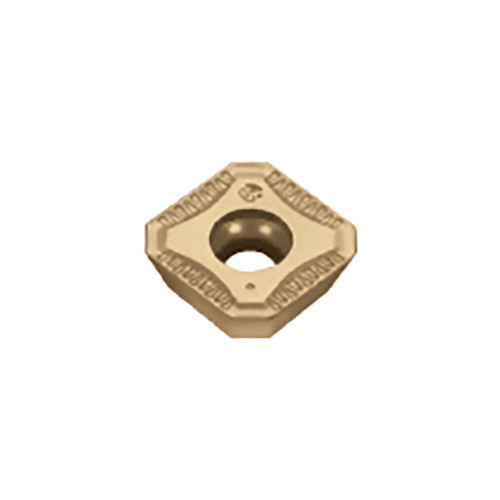

Taegutec SEKT 12T3 AFTN-M TT8080

Product Code: 5615278

$26.15$23.77 Ex. GST

Product Code: 5615278 SKU 5615278 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

High positive square inserts with four cutting edges for general applications in 45 cutters

Weight	0.0072 kg
barcode

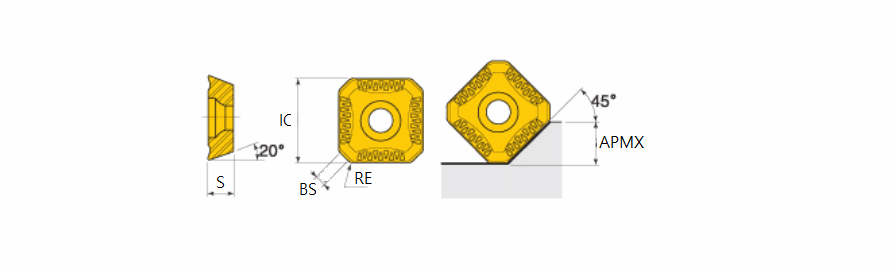

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8080 Application:, Chamfer & Serration, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth Cutting Edge Length (L): 6.7 mm Cutting Edge Material: Carbide Corner Radius (RE): 1.1 mm Minimum Feed per Tooth (fz(min)): 0.075 mm/tooth Depth of Cut Maximum (APMX): 5.36 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 13.2 mm Body Material: Carbide Insert Thickness (S): 3.8 mm Unit: M Coating: TiAlN+TiN
