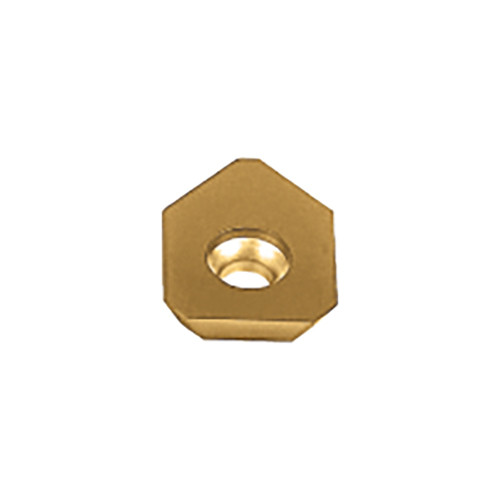

Taegutec SEKT 12T3 AFTN-WC TT6080

Product Code: 5613710

$30.06$27.33 Ex. GST

Product Code: 5613710 SKU 5613710 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

High positive ground wiper inserts for finishing application in 45 cutters

Weight	0.0083 kg
barcode

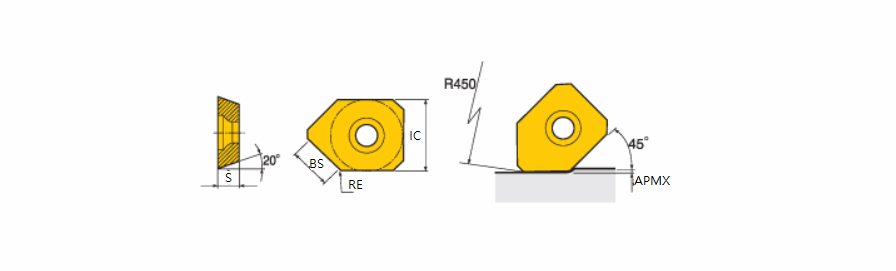

Additional Information	Applicable Material:, Cast Iron, Hard Materials, Grade: TT6080 Application:, Chamfer & Serration, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth Cutting Edge Length (L): 1 mm Cutting Edge Material: Carbide Corner Radius (RE): 1.2 mm Minimum Feed per Tooth (fz(min)): 0.075 mm/tooth Depth of Cut Maximum (APMX): 0.8 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 13.15 mm Body Material: Carbide Insert Thickness (S): 3.74 mm Unit: M Coating: AlTiN+TiN
