Taegutec SEMT 1304 PETR-M TT6080

Product Code: 5613649

$24.50$22.27 Ex. GST

Product Code: 5613649 SKU 5613649 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

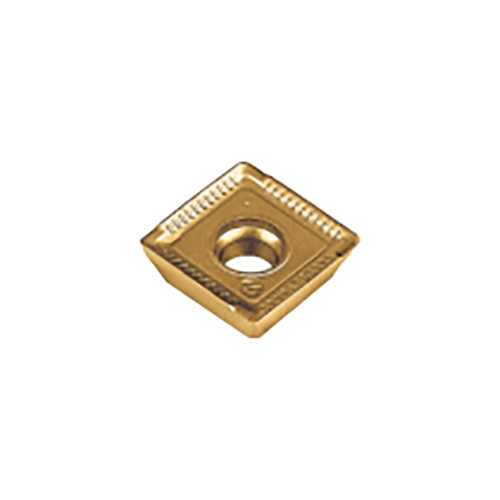

Positive square inserts with 4 helical cutting edges for 90° shoulder milling

Weight	0.0088 kg
barcode

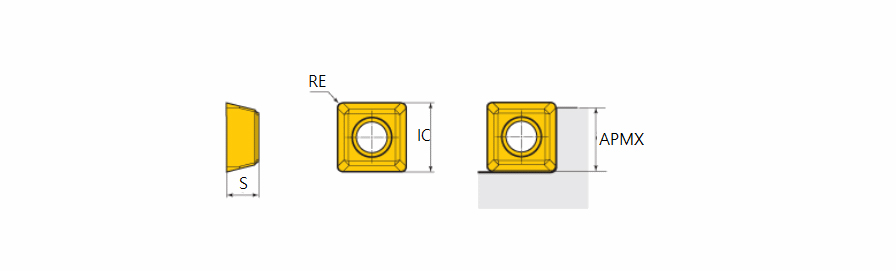

Additional Information	Applicable Material:, Cast Iron, Hard Materials, Maximum Feed per Tooth (fz(max)): 0.18 mm/tooth Application:, Facing, Inserts, Shouldering, Slotting, Cutting Edge Material: Carbide Cutting Edge Length (L): 13.68 mm Minimum Feed per Tooth (fz(min)): 0.09 mm/tooth Depth of Cut Maximum (APMX): 8.8 mm Number of Cutting Edges: 4 Insert Thickness (S): 4.76 mm Measurement Type: Metric Coating: AlTiN+TiN Body Material: Carbide Grade: TT6080 Unit: M
