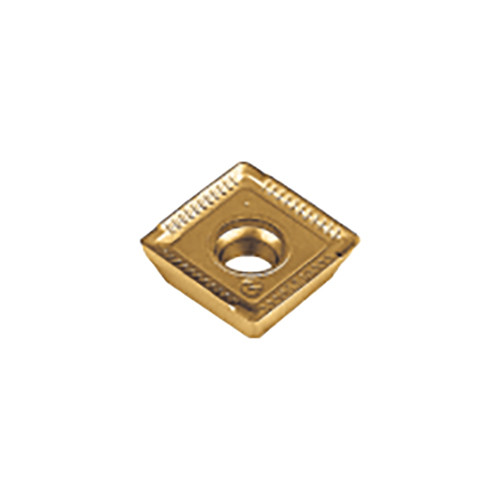

Taegutec SEMT 1304 PETR-ML TT8080

Product Code: 5615398

$24.50$22.27 Ex. GST

Product Code: 5615398 SKU 5615398 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Positive square inserts with 4 helical cutting edges for 90° shoulder milling

Weight	0.0091 kg
barcode

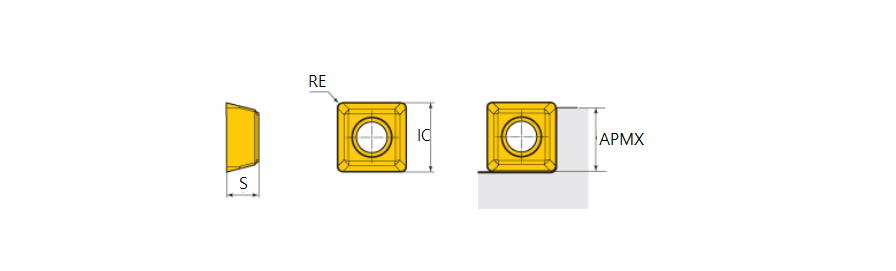

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Maximum Feed per Tooth (fz(max)): 0.14 mm/tooth Application:, Facing, Inserts, Shouldering, Slotting, Cutting Edge Material: Carbide Cutting Edge Length (L): 13.68 mm Minimum Feed per Tooth (fz(min)): 0.07 mm/tooth Depth of Cut Maximum (APMX): 8.8 mm Number of Cutting Edges: 4 Insert Thickness (S): 4.76 mm Measurement Type: Metric Coating: TiAlN+TiN Body Material: Carbide Grade: TT8080 Unit: M
