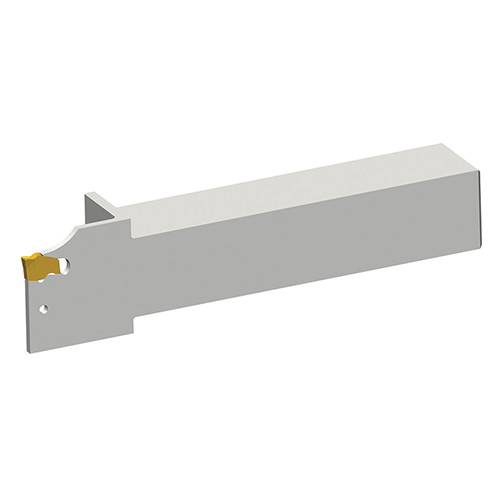

External holders with SFC/J rigid single-ended inserts for parting & deep grooving
Additional information
Weight
0.6700 kg
Dimensions
barcode
Additional Information
Shank Height (H): 25 mm
Cutting Direction (HAND): Left Hand
Shank Width (B): 25 mm
Measurement Type: Metric
Body Width (WB): 1.8 mm
Insert Seat Size Code (SSC): 2
Overall Length (OAL): 150 mm
Master Insert Identification (MIID): SFC 2
Head Length (LH): 32 mm
Functional Width (WF): 24.1 mm
Application:, Ext. Grooving, Parting, Tools for Swiss Machines, Head Bottom Offset Height (HBH): –
Body Material: Steel
Unit: M
Work Piece Parting Diameter Maximum (CUTDIA): 50 mm
