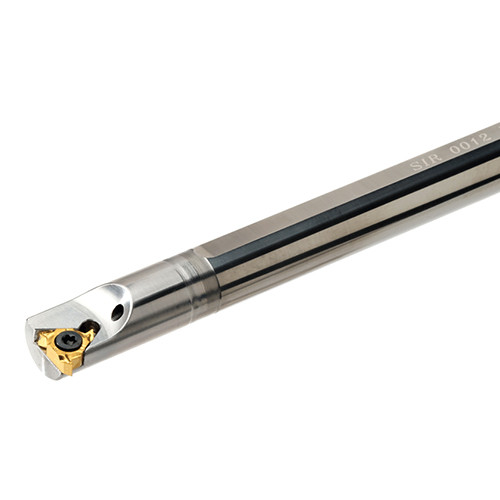

Solid Carbide Threading Bars for High Rigidity. (C-Carbide shank)
Additional information
Weight
0.0600 kg
Dimensions
barcode
Additional Information

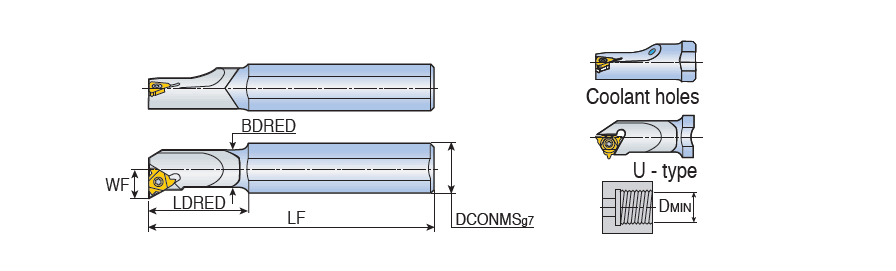

Connection Diameter Machine Side (DCONMS): 8 mm
Body Material: Steel
Minimum Bore Diameter (DMIN): 9 mm
Usable Length (LU): 30 mm
Overall Length (OAL): 125 mm
Measurement Type: Metric
Application:, Internal Threading, Unit: M
Insert to Shank Reference: 5.3 mm
