Taegutec SNET 1205-W TT9080

Product Code: 5611520

$41.18$37.44 Ex. GST

Product Code: 5611520 SKU 5611520 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

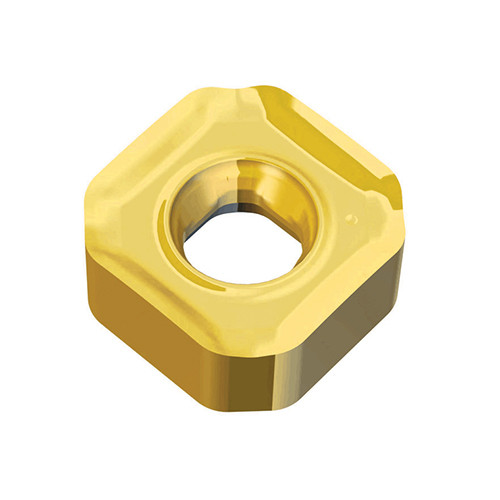

Taegutec SNET 1205-W TT9080

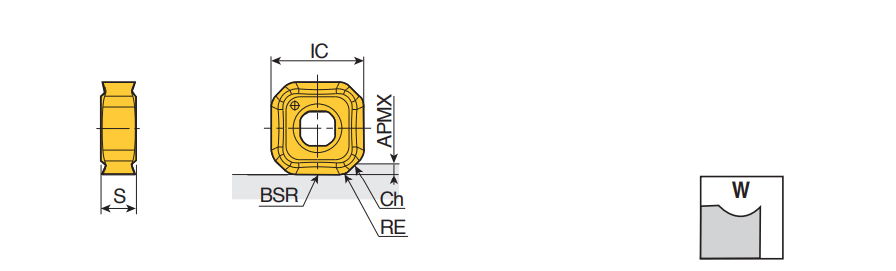

Taegutec SNET 1205-W TT9080 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Precision ground wiper inserts of single-side with chamfers & 4 cutting edges of SNET 12 for steel finishing showing excellent chip evacuations

Additional information

Weight	0.0097 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth Cutting Edge Length (L): 1 mm Cutting Edge Material: Carbide Corner Radius (RE): 2 mm Minimum Feed per Tooth (fz(min)): 0.07 mm/tooth Depth of Cut Maximum (APMX): 0.8 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 12.7 mm Body Material: Carbide Insert Thickness (S): 5.56 mm Unit: M Coating: TiAlN+TiN

Brand

Taegutec
