Taegutec SNEX 1204P-W TT2510

Product Code: 6135608

$45.30$41.18 Ex. GST

Product Code: 6135608 SKU 6135608 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

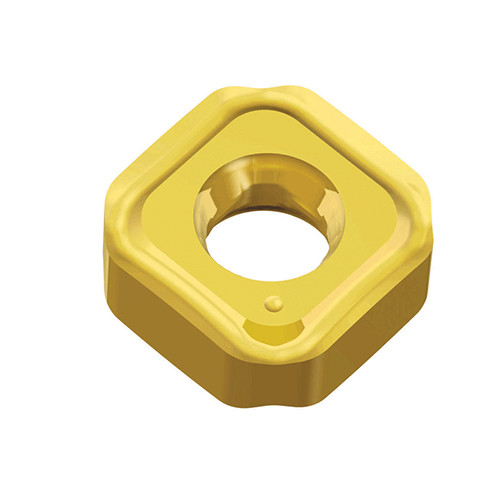

Precision ground wiper inserts of SN 12 with chamfers and 8 cutting edges for steel and cast iron finish machining

Weight	0.0091 kg
barcode

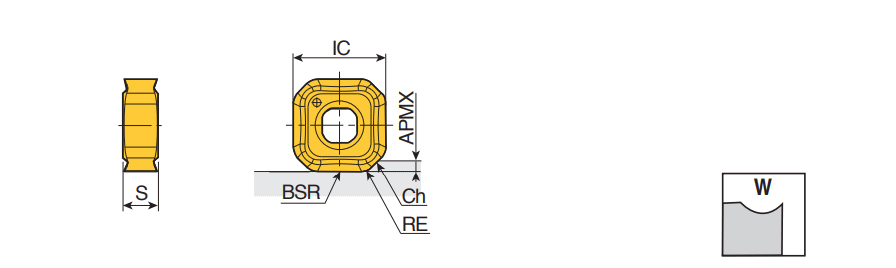

Additional Information	Applicable Material:, Steel, Hard Materials, Grade: TT2510 Application:, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth Cutting Edge Length (L): 1 mm Cutting Edge Material: Carbide Corner Radius (RE): 2 mm Minimum Feed per Tooth (fz(min)): 0.07 mm/tooth Depth of Cut Maximum (APMX): 0.8 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 12.7 mm Body Material: Carbide Insert Thickness (S): 4.76 mm Unit: M Coating: AlTiN
