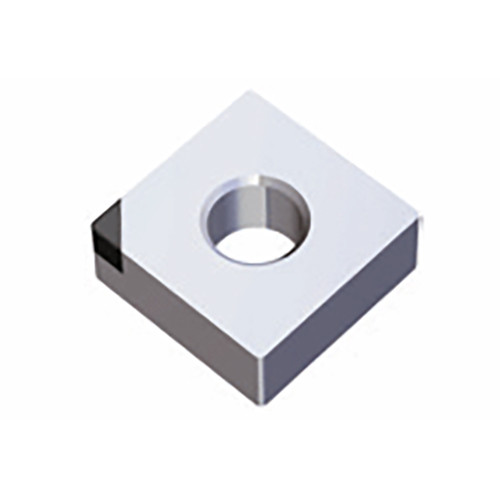

Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec SNGA 120404 LS TB7015
$132.95$120.86 Ex. GST
Negative Square inserts with CBN tips for finishing of hardened steel and cast iron
Applicable Material:, Cast Iron, Hard Materials, Grade: TB7015 Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Ext 75° App 90° Square, Ext 75° App Face 90° Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 0.1 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 3 mm Cutting Edge Length (L): 12.7 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.15 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: PCBN Body Material: Carbide Coating: Uncoated Unit: M
