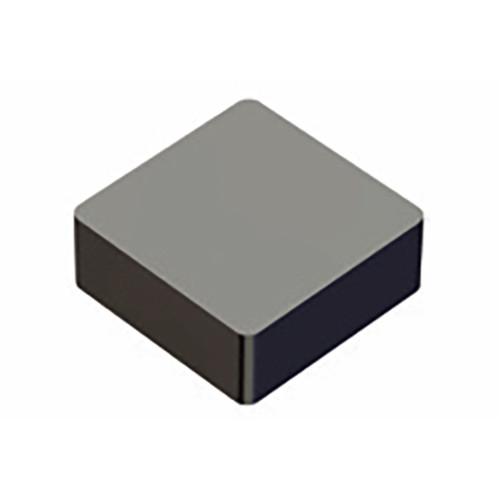

Taegutec SNGN 120412 T7 AW120

Applicable Material:, Cast Iron, Grade: AW120
Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Ext 75° App 90° Square, Ext 75° App Face 90° Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 0.1 mm
Corner Radius (RE): 1.2 mm
Depth of Cut Maximum (APMX): 3 mm
Cutting Edge Length (L): 12.7 mm
Min. Turning Feed (ft(min)): 0.05 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.25 mm/rev
Inscribed Circle Diameter (IC): 12.7 mm
Measurement Type: Metric
Cutting Edge Material: Ceramic
Body Material: Carbide
Coating: Al203+Zr2O3
Unit: M
