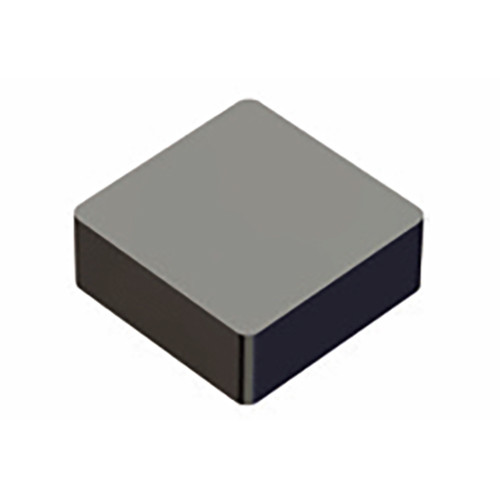

Taegutec SNGN 120712 T6 TC3020

Applicable Material:, Super-Alloys / Titanium, Min D.O.C.: 0.1 mm
Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Ext 75° App 90° Square, Ext 75° App Face 90° Square, Inserts, Int 75° App 90° Square, Depth of Cut Maximum (APMX): 3 mm
Corner Radius (RE): 1.2 mm
Min. Turning Feed (ft(min)): 0.05 mm/rev
Cutting Edge Length (L): 12.7 mm
Max. Turning Feed (ft(max)): 0.25 mm/rev
Insert Thickness (S): 7.94 mm
Measurement Type: Metric
Inscribed Circle Diameter (IC): 12.7 mm
Body Material: Carbide
Cutting Edge Material: Ceramic
Unit: M
Grade: TC3020
