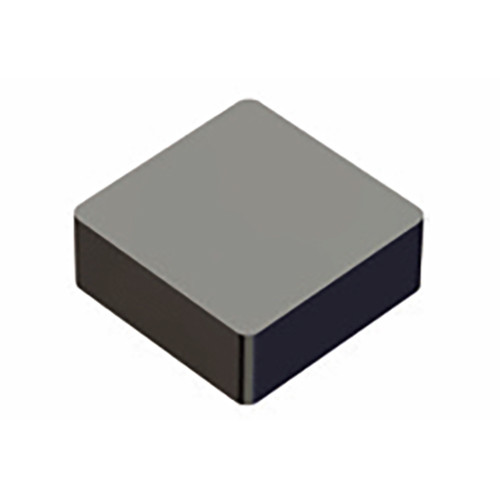

Taegutec SNGN 150712 T6 TC430

Applicable Material:, Super-Alloys / Titanium, Grade: TC430
Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Ext 75° App 90° Square, Ext 75° App Face 90° Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 0.1 mm
Corner Radius (RE): 1.2 mm
Depth of Cut Maximum (APMX): 3.5 mm
Cutting Edge Length (L): 15.87 mm
Min. Turning Feed (ft(min)): 0.05 mm/rev
Insert Thickness (S): 7.94 mm
Max. Turning Feed (ft(max)): 0.25 mm/rev
Inscribed Circle Diameter (IC): 15.88 mm
Measurement Type: Metric
Cutting Edge Material: Whiskers
Body Material: Carbide
Coating: Uncoated
Unit: M
