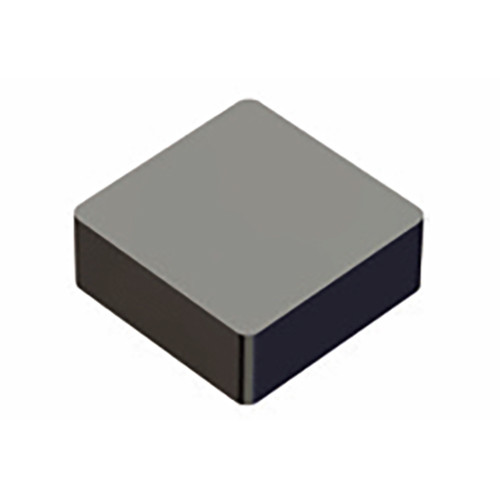

Taegutec SNGN 190716 AB30

Applicable Material:, Cast Iron, Hard Materials, Grade: AB30
Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Ext 75° App 90° Square, Ext 75° App Face 90° Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 0.1 mm
Corner Radius (RE): 1.6 mm
Depth of Cut Maximum (APMX): 4 mm
Cutting Edge Length (L): 19.05 mm
Min. Turning Feed (ft(min)): 0.05 mm/rev
Insert Thickness (S): 7.94 mm
Max. Turning Feed (ft(max)): 0.3 mm/rev
Inscribed Circle Diameter (IC): 19.05 mm
Measurement Type: Metric
Cutting Edge Material: Ceramic
Body Material: Carbide
Coating: TiCN+Al2O3
Unit: M
