Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec SNGX 120716 T7-CH AS500
$47.94$43.58 Ex. GST

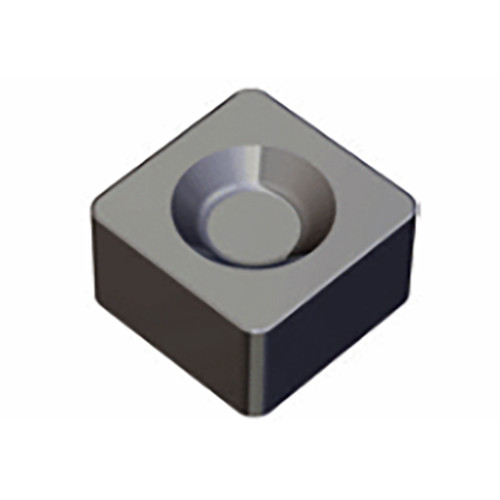

Negative Square ground Ceramic Dimple inserts for cast iron roughing
Applicable Material:, Cast Iron, Grade: AS500 Application:, Ext 45° App 90° Square, Ext 45°App Face&Turn 90°Square, Ext 75° App 90° Square, Ext 75° App Face 90° Square, Inserts, Int 75° App 90° Square, Min D.O.C.: 0.1 mm Corner Radius (RE): 1.6 mm Depth of Cut Maximum (APMX): 3 mm Cutting Edge Length (L): 12.7 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 7.94 mm Max. Turning Feed (ft(max)): 0.35 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Ceramic Body Material: Carbide Coating: SiAlON Unit: M
