Taegutec SNGX 1306 ANTN-M TT9080

Product Code: 5614713

$35.60$32.36 Ex. GST

Product Code: 5614713 SKU 5614713 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

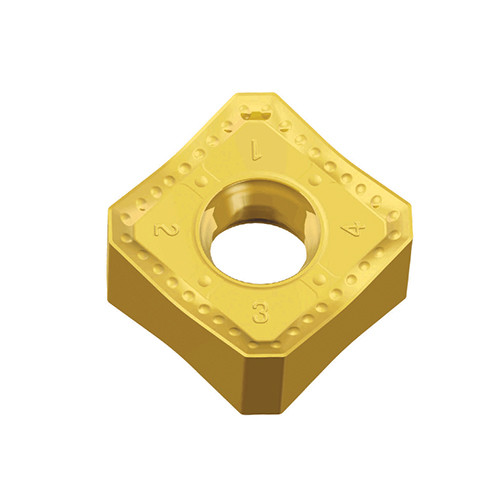

Taegutec SNGX 1306 ANTN-M TT9080

Taegutec SNGX 1306 ANTN-M TT9080 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double-sided square inserts with 8 cutting edges for 45 face mills and general applications from roughing to finishing

Additional information

Weight	0.0129 kg
barcode

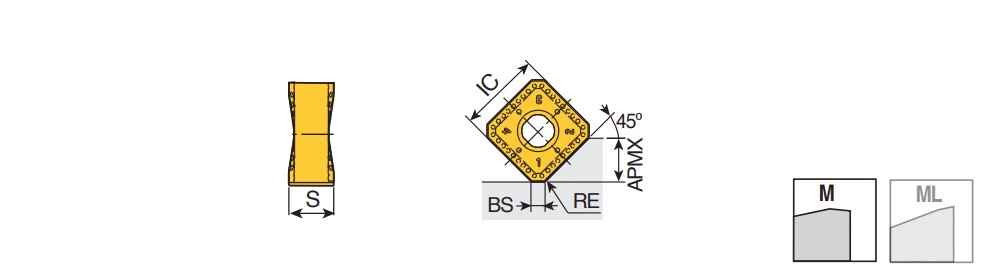

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Chamfer & Serration, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.25 mm/tooth Cutting Edge Length (L): 7 mm Cutting Edge Material: Carbide Corner Radius (RE): 0.4 mm Minimum Feed per Tooth (fz(min)): 0.13 mm/tooth Depth of Cut Maximum (APMX): 6 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 13.5 mm Body Material: Carbide Insert Thickness (S): 6.8 mm Unit: M Coating: TiAlN+TiN

Brand

Taegutec
