Taegutec SNGX 1306 ANTN-W TT9080

Product Code: 5614733

$40.94$37.22 Ex. GST

Product Code: 5614733 SKU 5614733 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

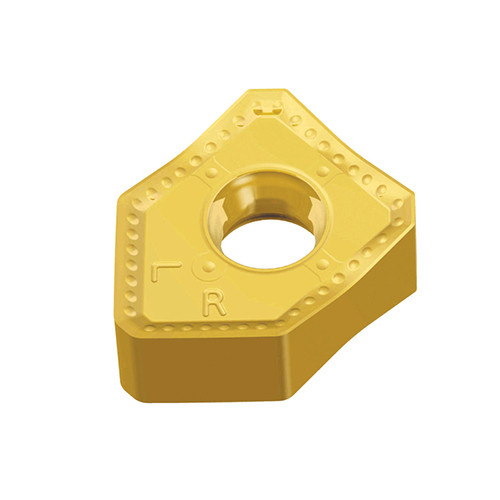

Ground wiper inserts with 2 right-handed & 2 left-handed cutting edges for 45° face mills

Weight	0.0152 kg
barcode

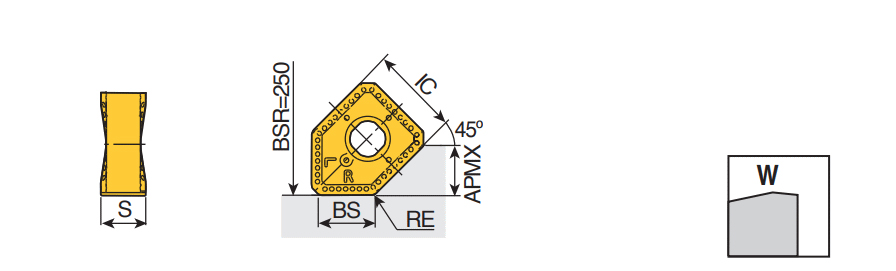

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Chamfer & Serration, Facing, Inserts, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth Cutting Edge Length (L): 1 mm Cutting Edge Material: Carbide Corner Radius (RE): 1.2 mm Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth Depth of Cut Maximum (APMX): 1 mm Measurement Type: Metric Inscribed Circle Diameter (IC): 13.5 mm Body Material: Carbide Insert Thickness (S): 6.8 mm Unit: M Coating: TiAlN+TiN
