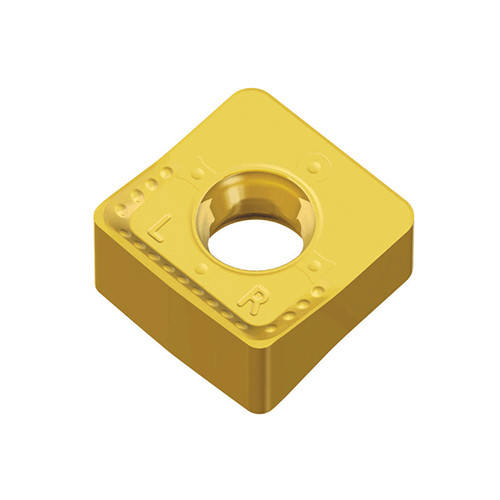

Ground wiper inserts with 2 right-handed & 2 left-handed cutting edges for 90° face mills
Additional information
Weight
0.0143 kg
barcode
Additional Information
Applicable Material:, Cast Iron, Hard Materials, Grade: TT6080
Application:, Facing, Inserts, Shouldering, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth
Cutting Edge Length (L): 1 mm
Cutting Edge Material: Carbide
Corner Radius (RE): 1 mm
Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth
Depth of Cut Maximum (APMX): 1 mm
Measurement Type: Metric

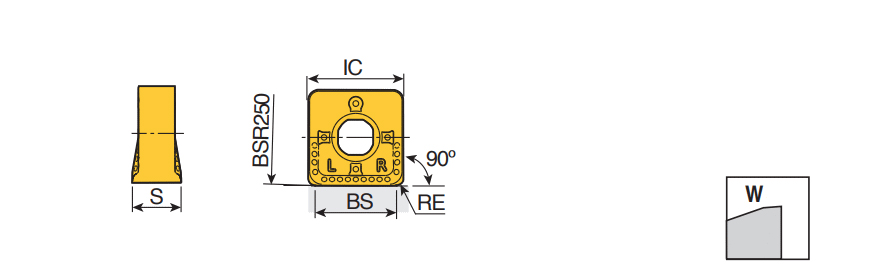

Inscribed Circle Diameter (IC): 13.5 mm
Body Material: Carbide
Insert Thickness (S): 6.8 mm
Unit: M
Coating: AlTiN+TiN
